Tolerance Calculation Tool

I created this macro for the purpose of automatically calculating the tolerance dimension needed for the 2D Harness Drawings.

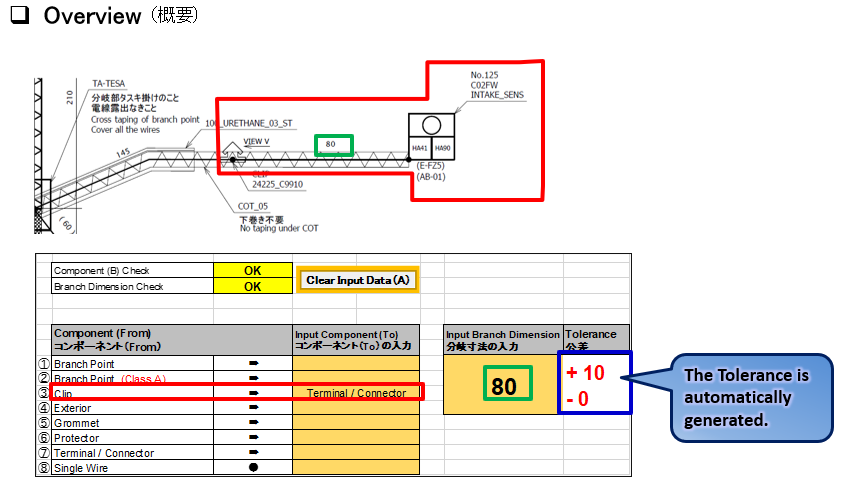

Once the required data are filled-in, the Tolerance Dimension is automatically calculated.

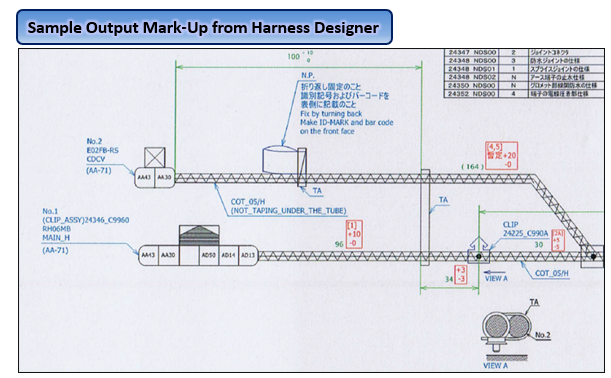

After the calculation, I transfer the excel data into the 2D drawing.

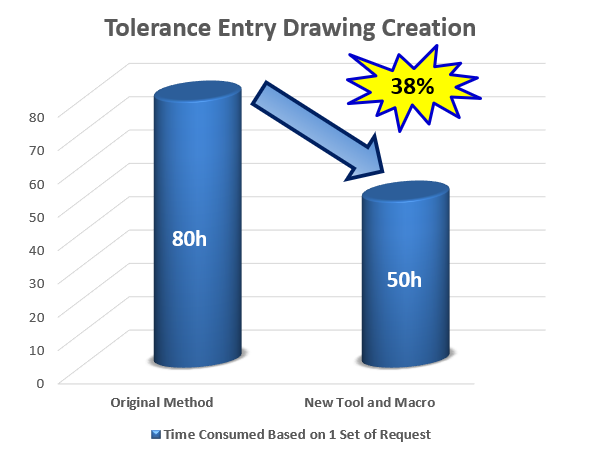

This macro was able to reduce the time consumed to 38% compared to calculating the tolerance manually.

***In compliance with the confidentiality policies of my previous company, I am unable to share the actual macro tool or any related outputs.

       The only material approved for sharing is my training results PowerPoint presentation, where the images above are referenced.
